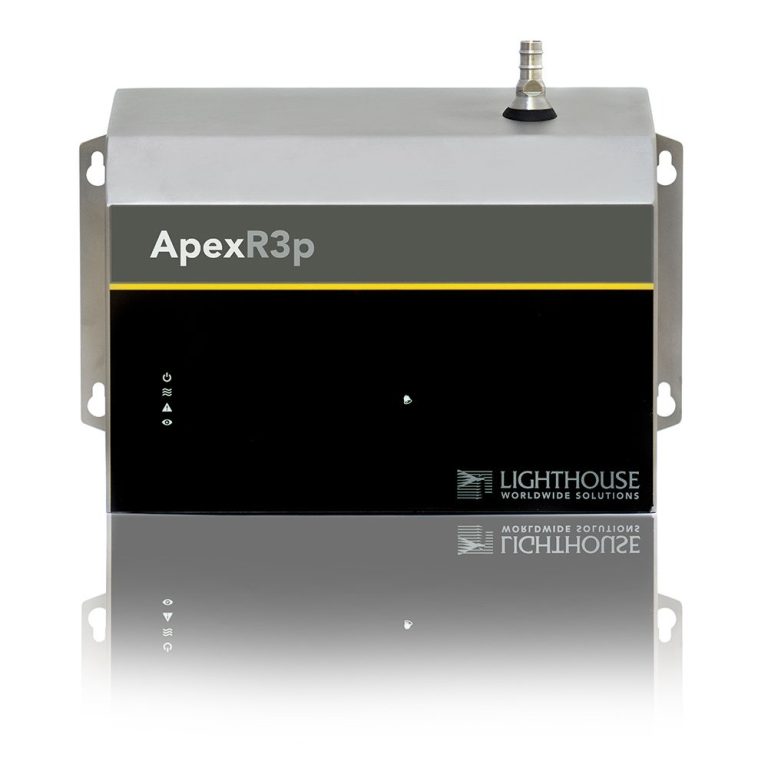

| R3p | R5p | R02p | R03p | R05p | |
Specifications |
|||||
| Minimum Size Detection | 0.3 μm | 0.5 μm | 0.2 μm | 0.3 µm | 0.5 µm |
| Standard 2 channel sizes | 0.3, 0.5, μm | 0.5, 5.0 μm | 0.2, 0.3 µm | 0.3, 0.5 µm | 0.5, 5.0 µm |
| Optional 4 channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm | 0.2, 0.3, 0.5, 1.0 µm | 0.3, 0.5, 1.0, 5.0 µm | 0.5, 1.0, 5.0, 10.0 µm |
| Additional Available sizes | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 μm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm | 0.2, 0.3, 0.5, 0.7, 1.0, 2.0 µm | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 µm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0,10.0µm |
| Flow Rate | 1 CFM (28.3 LPM) | 0.1 CFM (2.83 LPM) | |||
| Dimensions | 6.65”(h) x 9.13”(w) x 4.75”(d) [16.89 x 23.19 x 12.06 cm] | 4.87”(h) x 6.50”(w) x 3.26”(d) [12.37 x 16.51 x 8.28 cm] | |||
| Weight | 6.3 lbs (2.9 kg) | 3.1 lbs (1.4 kg) | |||
| Communication | Ethernet or Serial | ||||
| Modbus Protocol | TCP or RTU or ASCII | ||||
| Data Storage Records | 3.000 | ||||
| Self Diagnostics | Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health. | ||||
| Web Browser | Remote access via web browser | ||||
| Validation Mode | Yes | ||||
| Alarm Light | Yes | ||||
| Enclosure | 316L Stainless Steel | ||||
| Power | 24 VDC 120W | 24 VDC 25W | |||
| Internal Vacuum Pump | 1.0 CFM with HEPA Filtered Exhaust | 0.1 CFM with HEPA Filtered Exhaust | |||
| Light Source | Laser Diode | ||||
| Calibration | Designed for ISO 21501-4 Compliance | ||||
| Zero Count Level | <1count/5 minutes per ISO 21501-4 | ||||
| Concentration Limits | 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | |||
| Counting Efficiency | 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size | ||||
Options |
|||||
| Software | LMS Express, LMS Express RT or LMS Pharma. | ||||
| Wall Mount Bracket | Wall mountable. | ||||
| Smart Port Accessory | Temperature & Humidity probe | ||||

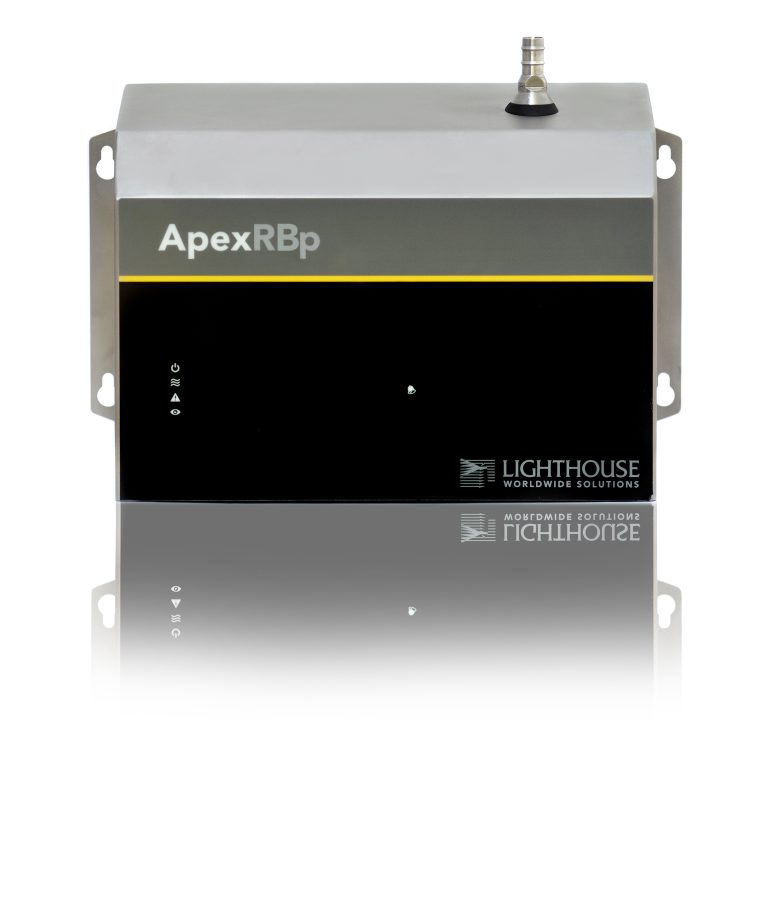

ApexRemote Series Particle Counting’s Latest Technology
Quick How To: ApexRemote || How to Connect with a Mobile Device
If the integrity of your data is mission critical as it is in GMP regulated industries, if risk mitigation of data errors and sensor failures matters to you, if you need to wipe down your sensors frequently or you use VHP for room sterilization, the ApexR will delight you and become the solid foundation you need in a solid Environmental Monitoring Program.

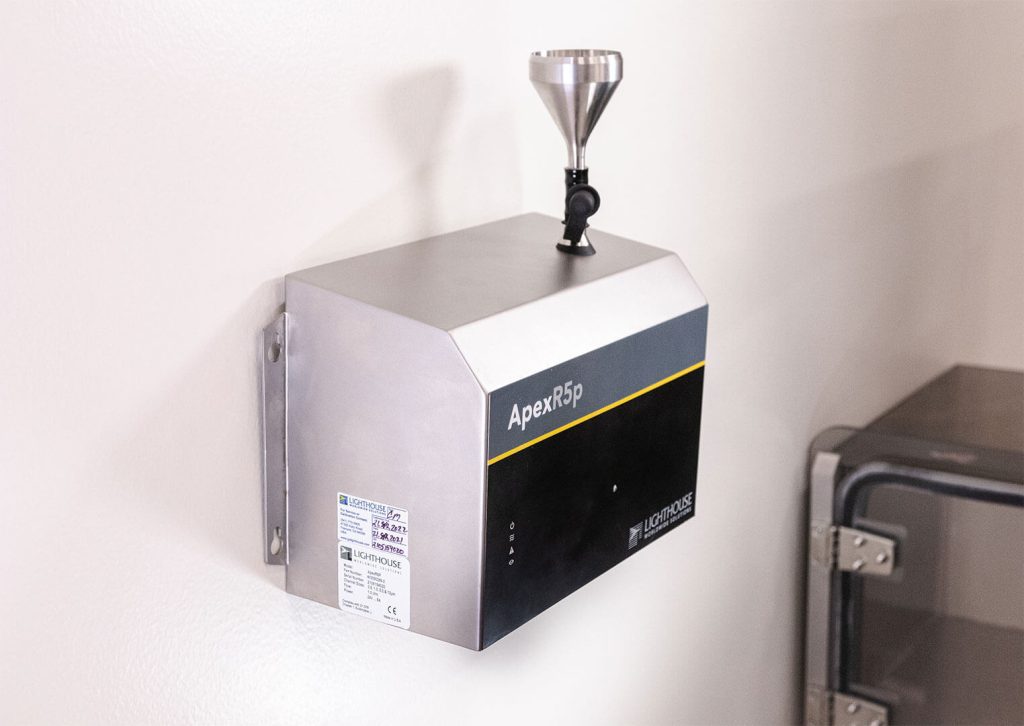

Apex Remote with pump models are available with either 0.1 CFM or 1.0 CFM airflow rates. The self contained vacuum pump includes HEPA filtered exhaust and will not contaminate the surrounding environment. Apex provides real time continuous data collection at a cost effective price per point offering.
Apex represents everything that is important in a world class Environmental Monitoring System. It is the Best-In-Class sensor and meets all the industry standards.
