Technical Details

  ApexZ3 ApexZ50

Specifications

Size Range 0.3 - 10.0 μm 0.5 - 10.0 μm
Standard 6 Channels 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm 0.5, 0.7, 1.0, 3.0, 5.0, 10.0 μm
Flow rate 1.0 CFM (28.3 LPM) 100 LPM
Laser Source Laser Diode
Zero Count Level < 1 count / 5 minutes (per ISO 21501-4)
Concentration Limits 1,000,000 particles / ft3 @ 10% coincidence loss suitable for ISO classes 1-8 cleanrooms 300,000 particles / ft3 @ 10% coincidence loss suitable for ISO classes 1-8 cleanrooms
Counting Efficiency 50% @ 0.3 μm; 100% for particles > 1.5 X first channel particle size 50% @ 0.5 µm; 100% for particles > 1.5 X first channel particle size
Calibration

 ISO 21501-4 Compliant Accredited ISO 17025:2017

Self-Diagnostics Laser Power/Current/Supply, Flow out-of-range, No flow, PA Background/Supply/Health
Count Modes Sample, Concentration, Beep, Custom Recipies and Certification modes
Data Storage 10,000 Sample Records, 2500 Locations, 250 Groups, 500 Presets, 500 Sample Plans, 500 Certifications, 100 Reports, 250 Users
Communication Ethernet, USB standard, Wi-Fi (802.11 b/g/n)
Supporting Software LMS Express, LMS Express RT, LMS Pharma, LMS Pro
Environmental Sensors Temperature/relative humidity probe: 32-122°F (0-50°C) ± 1°F (0.5°C), 15-90% ± 2%RH
Touch Screen Display 7.0 inch (8.89 cm), 1200 x 800 IPS color touch screen
Speakers 2x adjustable up to 70 dB to indicate status and alerts
Carry Handle With RGB light pipe for status and alarms
Printer Embedded panel-mount printer
Reports FED 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer
Alert User configurable warnings and alarms
Sample Inlet 3/8 inch Inlet nozzle 1/2 inch Inlet nozzle
Sample Output Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow
Vacuum Source Internal blower, automatic flow control
Enclosure Chemically Resistant Polycarbonate blend, conductive lining, VHP compatible
Power External power supply: 24 VDC, 5 A max draw
Battery 2x Li-Ion battery capacity*, removable and rechargeable, 11 hours nominal use, 50% duty cycle no printing 2x Li-Ion battery capacity*, removable and rechargeable, 8 hours nominal use, 50% duty cycle no printing
Dimensions 12.76“ (l) x 6.23” (w) x 8.88” (h), [32.41(l) x 15.82(w) x 22.55(h) cm]
Temperature Range 50°F to 104°F (10°C to 40°C), 20% to 95% relative humidity, non-condensing
Weight 7.05 lbs (3.19 kg) without batteries, battery weight 1.35 lbs (0.61 kg)
Languages English, Spanish, Portuguese, German, French, Italian, Russian, Chinese, Korean, Japanese, Turkish, Thai

Included

  USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 1 CFM, ISP clamp, tubing 3/8“ ID x 1/2” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate USB flash drive 512 MB with lanyard, tripod mini 7” telescoping, ISO probe 100 LPM, ISP clamp, tubing 1/2“ ID x 5/8” OD BevXX 10 feet, Zero count filter, 24 VDC 5.0 amp power adapter and power cord, *1 Li-Ion Smart battery included (2 battery slot capacity), Calibration certificate

Optional

  Temperature & humidity probe, Isokinetic sample probes (1 CFM iso probe, 100 LPM iso probe) with 6 ft tubing, additional Li-Ion batteries, External battery charger w/AC power cord, Printed Operating Manual

How - To - Videos

ApexZ3 Hero
ApexZ3
Click to view 360°

Accessories

HPD ported
HIgh Pressure Diffuser Ported Version
High Pressure Diffuser
High Pressure Diffuser Vented Version
Temperature Relative Humidity Sensor

Take your environmental monitoring to the next level

With the ApexZ

Containing the most complete system of self-diagnostics in the industry, an integrated alarm indicator in the handle, and up to an 11-hour battery life with hot-swappable smart batteries, and both WiFi and USB communication. When you are looking to take your environmental monitoring program to the next level, the ApexZ is your solution.

Key Features:

  • 0.3 – 10.0μm  Particle Size Range
  • 1CFM Flow Rate
  • Bi-Directional Integration into LIMS EM Systems
  • Sealed Chemically Compatible Enclosure
  • Advanced Self-Diagnostics
  • Integrated Status Lights
  • Hot-Swappable Smart Batteries
  • Wi-Fi, Ethernet and USB Data Transfer Options
  • 21 CFR Part 11 Compliant
  • Customizable Data Reports
  • Built-In Cleanroom Certification Reports
  • 2 Year Warranty

Key Features:

  • 0.5 – 10.0μm  Particle Size Range
  • 100 LPM Flow Rate
  • Bi-Directional Integration into LIMS EM Systems
  • Sealed Chemically Compatible Enclosure
  • Advanced Self-Diagnostics
  • Integrated Status Lights
  • Hot-Swappable Smart Batteries
  • Wi-Fi, Ethernet and USB Data Transfer Options
  • 21 CFR Part 11 Compliant
  • Customizable Data Reports
  • Built-In Cleanroom Certification Reports
  • 2 Year Warranty

Ensuring Purity and Performance: The Critical Role of Particle Contamination Monitoring in Industrial Gases

Discover how our advanced particle counters safeguard the integrity and efficiency of key processes by detecting particle contaminants in essential gases like Argon, Helium, CO2, Ammonia, Nitrogen, and other inert gases. Ensuring the highest standards in industries from pharmaceuticals to semiconductors.
  • (Ar) (He) (NH 3 ) (N) (CO 2 ) OTHER

    Argon

    Contaminants in argon can affect its inertness, leading to unwanted reactions in processes where argon is used to create a stable, non-reactive environment. This is crucial in applications like shielding gases in welding or inert atmospheres in metal manufacturing.

  • Helium

    (Solair only) Due to its small atomic size, helium is highly sensitive to particle contamination. Contaminants can affect its efficacy as a cooling medium in cryogenics and its purity in gas chromatography, impacting the accuracy and efficiency of these processes.

  • (He) (NH 3 ) (N) (CO 2 )

    CO2

    Particle contaminants in CO2 can affect its properties as a supercritical fluid, impacting its use in extraction and cleaning processes. In applications where CO2 is used for carbonation or as a refrigerant, purity is essential for both product quality and process efficiency.

  • (He) (NH 3 ) (N) (CO 2 )

    Nitrogen

    Nitrogen is often used for creating inert atmospheres in various industries. Particle contaminants in nitrogen can introduce impurities into these processes, affecting everything from the quality of pharmaceutical products to the integrity of electronic components in semiconductors

  • (He) (NH 3 ) (N) (CO 2 )

    Ammonia

    In semiconductor manufacturing, impurities in ammonia can lead to defects in nitride films, affecting the performance of electronic devices. In chemical synthesis, contaminants can alter reaction pathways, leading to undesired products or yields.

  • (He) (NH 3 ) (N) (CO 2 ) OTHER

    Other Inert Gases

    Other Inert Gases Inert gases like neon, xenon, and krypton are used in specialized applications where their specific properties are crucial. Particle contaminants can alter these properties, thereby affecting the performance in applications like lighting, imaging, or as carrier gases.

Knowledge Center Assets

cleanroom webinar button
ApexZ webinar button

Applications

Instrument Files

Title
Download
Brochure – ApexZ Trifold Brochure
Download
Data Sheet – ApexZ3, ApexZ50
Download
Operating Manual – ApexZ3, ApexZ50
Download

Accessory Files

Title
Download
Datasheet – High Pressure Diffuser Data Sheet
Download

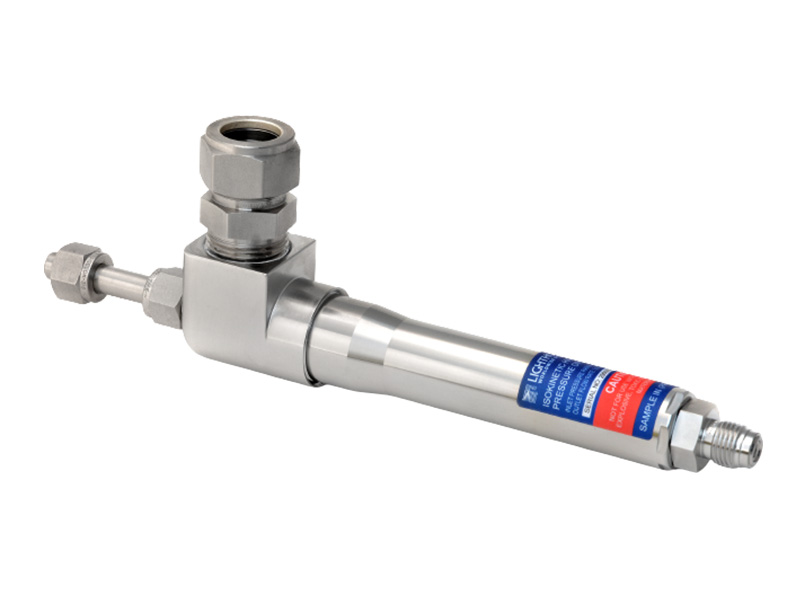

HPD - Ported

Features:

  • Allows sampling of Inert Pressurized Gasses
  • 0.1, 1.0, 2.0, 3.5 CFM Models available
  • Pressure Ranges from 5 – 150 PSI (depending on flow rate)
  • Ported & Exhausted versions available
  • Compatible with Handheld, Solair & ApexZ Instruments
  • 1.30″ (3.3 cm) at max diameter x 11.76″ [29.9 cm] max length
  • 1.50 lbs (0.68 kg)

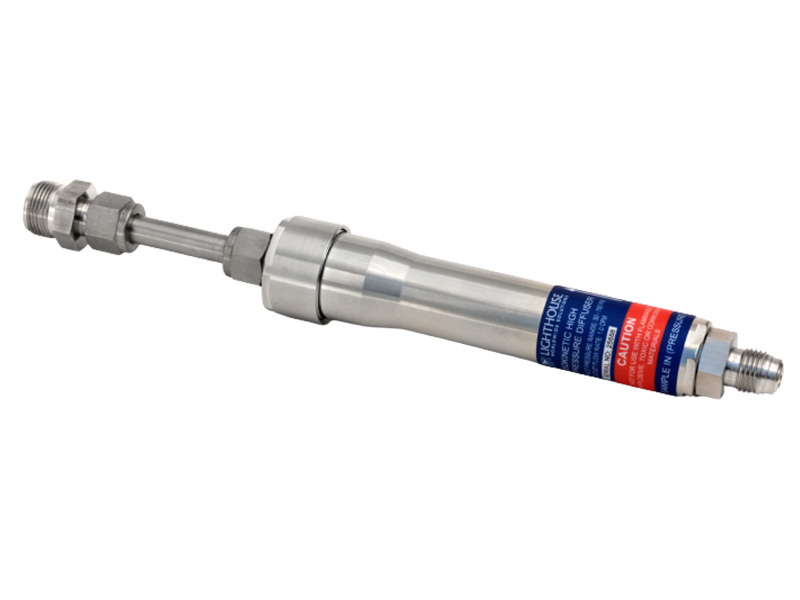

HPD - Vented

Features:

  • Allows sampling of Inert Pressurized Gasses
  • 0.1, 1.0, 2.0, 3.5 CFM Models available
  • Pressure Ranges from 5 – 150 PSI (depending on flow rate)
  • Ported & Exhausted versions available
  • Compatible with Handheld, Solair & ApexZ Instruments
  • 1.30 (3.3 cm) at max diameter x 10.65″ [27 cm] max length
  • 1.1 lbs (0.5 kg)

Temperature / Relative Humidity Sensor

  • 50°F to 104°F (10°C to 40°C), 20% to 95% relative humidity, non-condensing
  • To provide temperature and relative humidity readings on the display and in the memory buffer with particle counts.
  • Probe: 4.125” (l) x 0.625” diameter [10.478 cm x 1.588 diameter]
  • Cable length: 36” [ 91.44 cm]
  • Part # 402965409-1
