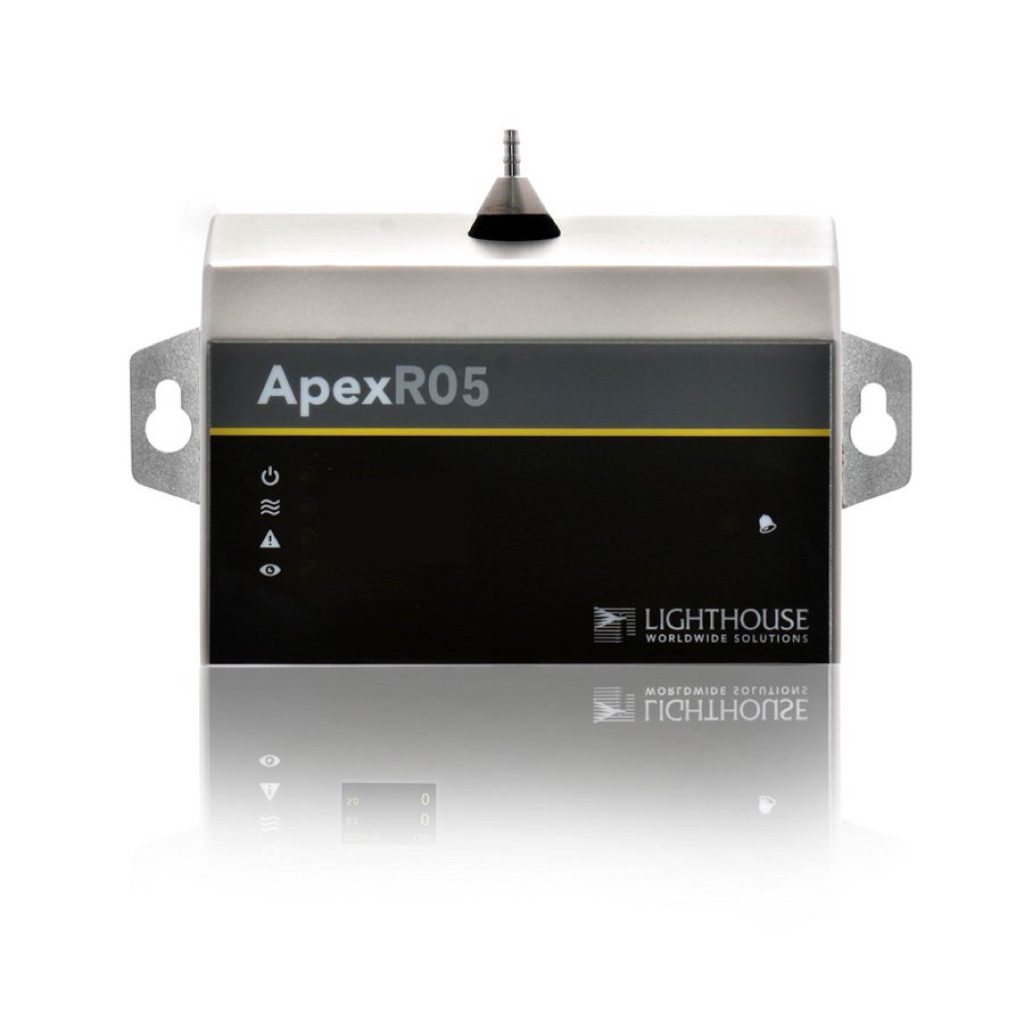

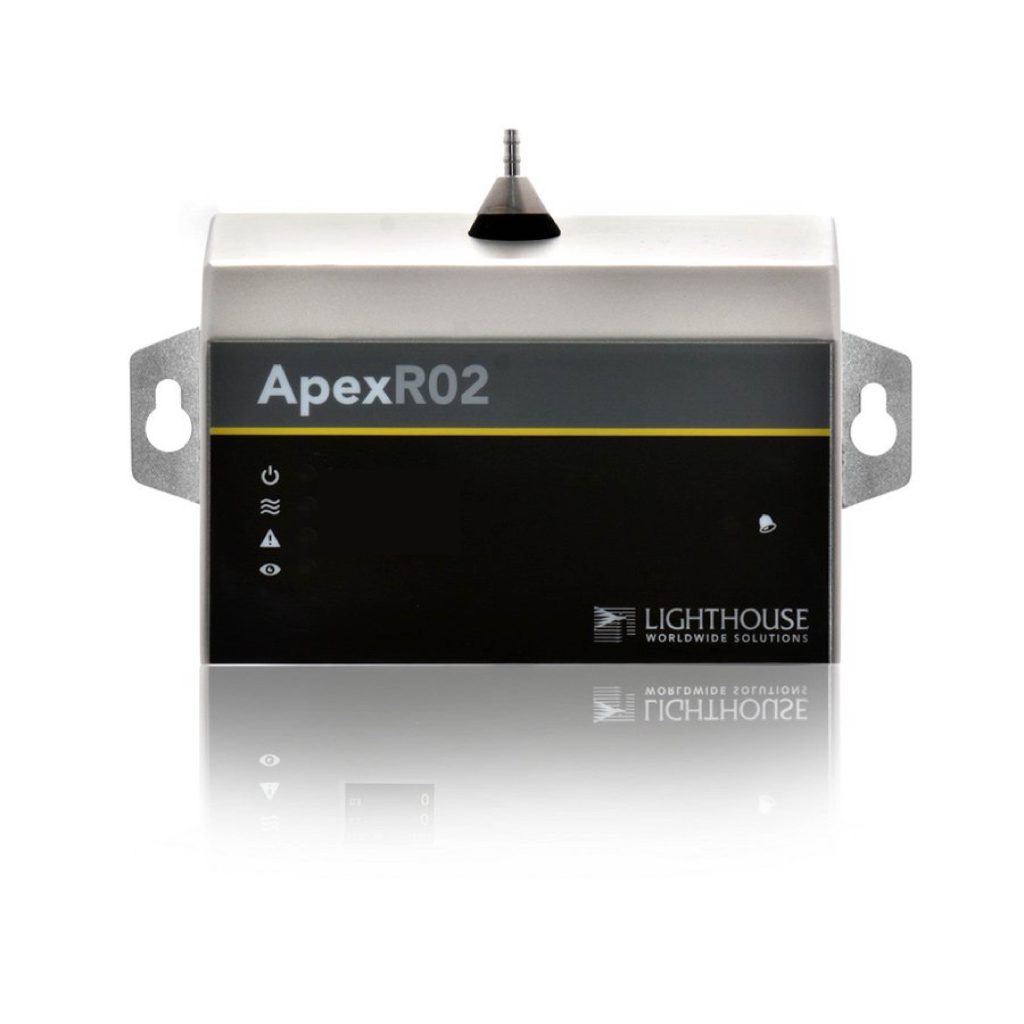

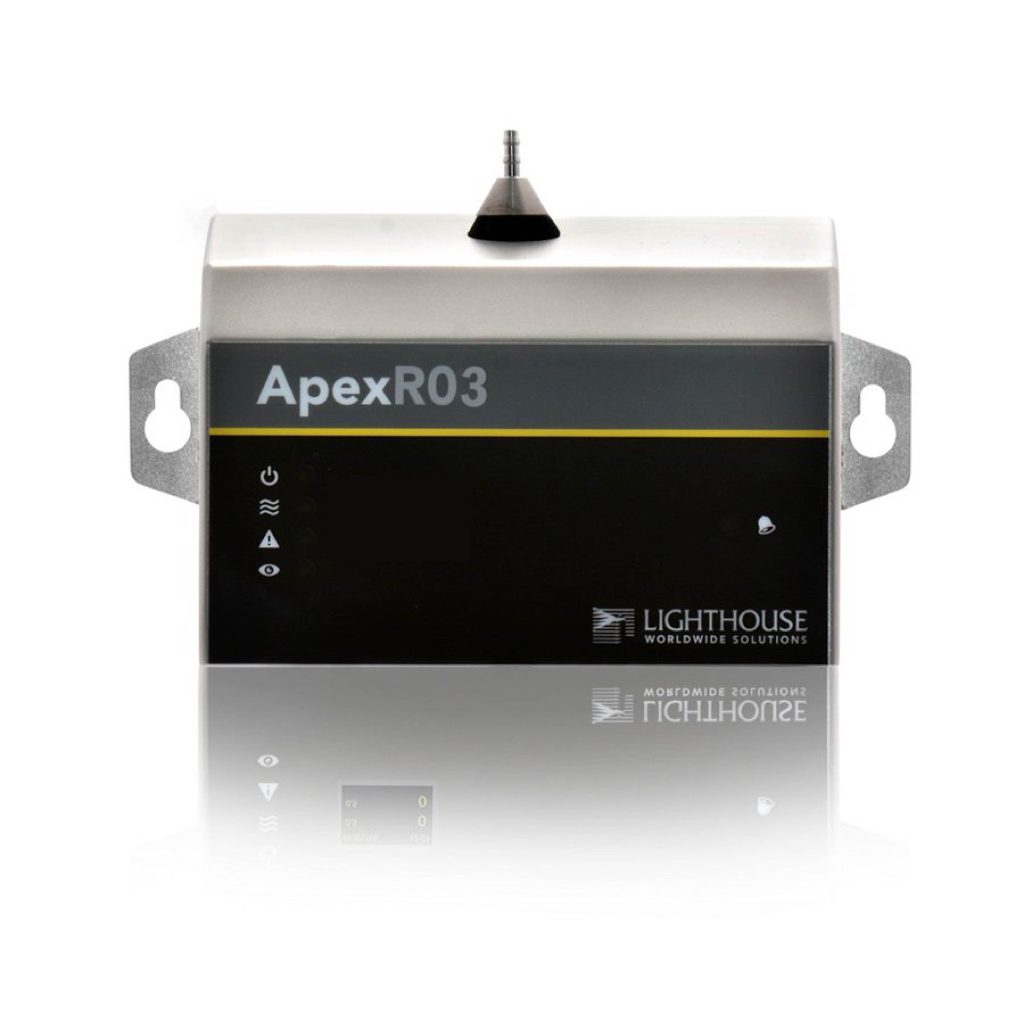

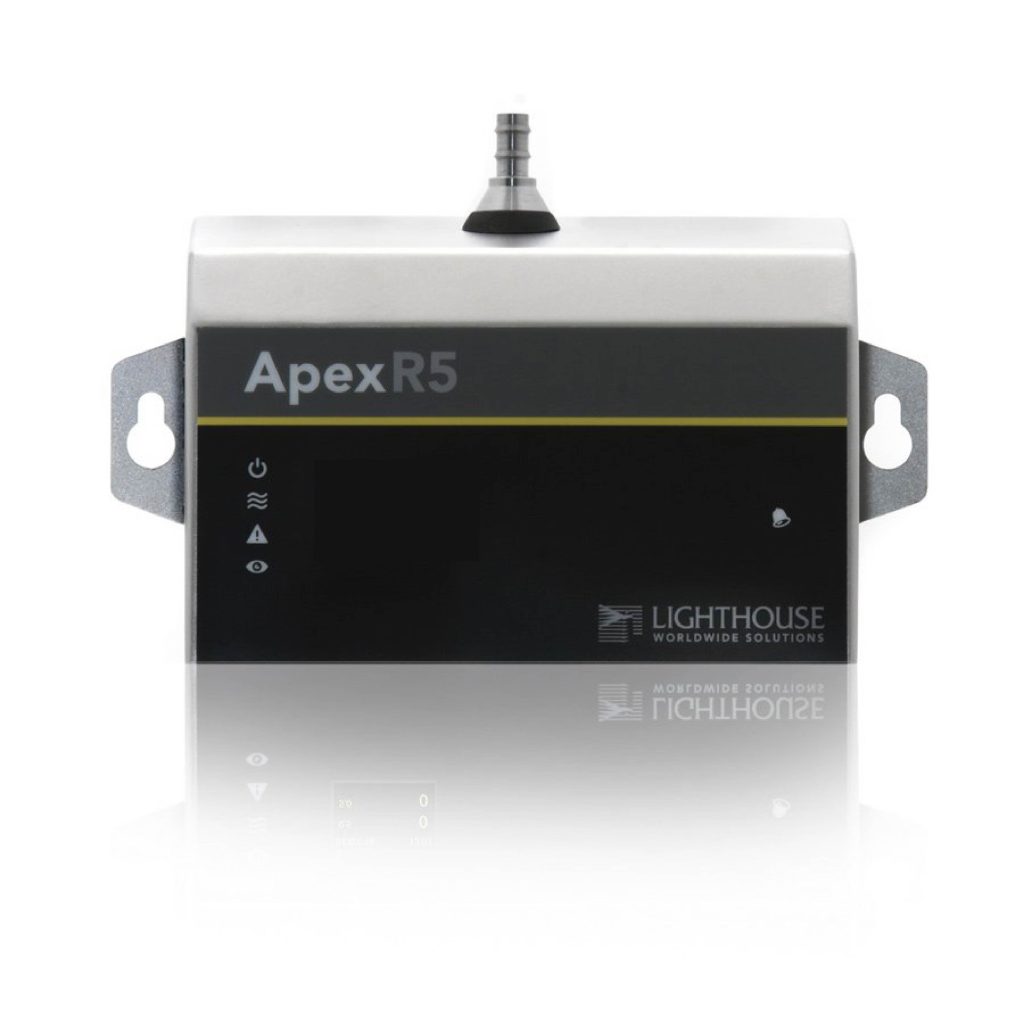

| ApexR5 | ApexR02 | ApexR03 | ApexR05 | ||
Specifications |
|||||
| Minimum Size Detection | 0.5 μm | 0.2 μm | 0.3 µm | 0.5 µm | |
| Standard 2 channel sizes | 0.5, 5.0 μm | 0.2, 0.3 µm | 0.3, 0.5 µm | 0.5, 5.0 µm | |
| Optional 4 channel sizes | 0.5, 1.0, 5.0, 10.0 μm | 0.2, 0.3, 0.5, 1.0 µm | 0.3, 0.5, 1.0, 5.0 µm | 0.5, 1.0, 5.0, 10.0 µm | |
| Additional Available sizes | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm | 0.2, 0.3, 0.5, 0.7, 1.0, 2.0 µm | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 µm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0,10.0µm | |
| Flow Rate / Nozzle Size | 1 CFM (28.3 LPM), 1/4” inlet and outlet fitting | 0.1 CFM (2.83 LPM), 1/8” inlet and outlet fitting | |||
| Weight | 1.6 lbs (0.73 kg) | 1.4 lbs (0.63 kg) | |||
| Communication | Ethernet or Serial | ||||
| Modbus Protocol | TCP or RTU or ASCII | ||||
| Data Storage Records | 3.000 | ||||
| Self Diagnostics | Laser power supply, laser current, laser power, photo detector power supply, backround voltage, photo detector health. | ||||
| Web Server | Remote access via web browser | ||||
| Validation Mode | Yes | ||||
| Alarm Light | Yes | ||||
| Enclosure | 304 Stainless Steel | ||||
| Power | 24 VDC, PoE | ||||
| External Vacuum Requirements | Nominal 1.0 CFM 18" (45.72 cm) of Hg | ||||
| Light Source | Laser Diode | ||||
| Calibration | Designed for ISO 21501-4 Compliance | ||||
| Zero Count Level | <1count/5 minutes per ISO 21501-4 | ||||
| Concentration Limits 1.0 CFM | 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | ||||
| Concentration Limits 0.1 CFM | 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms | ||||
| Counting Efficiency | 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size | ||||
| Dimensions | 6.38”x 2.93“x 4.63”(16.2x7.4x11.7cm) | ||||
Options |
|||||
| Software | LMS Express, LMS Express RT, LMS Pharma | ||||
| Display | OLED | ||||
| Smart Bracket | Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall | ||||

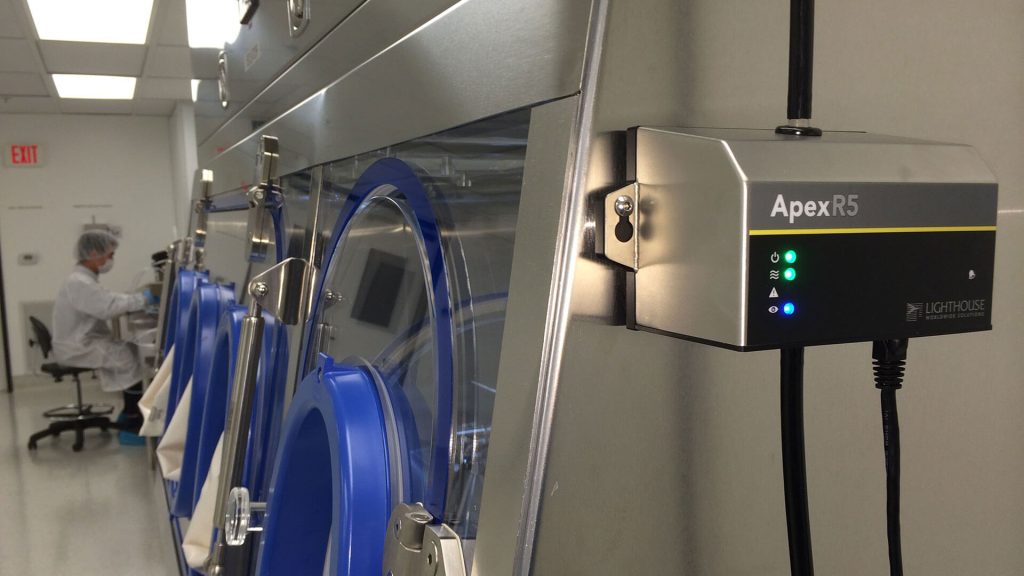

If the integrity of your data is mission critical as it is in GMP regulated industries, if risk mitigation of data errors and sensor failures matters to you, if you need to wipe down your sensors frequently or you use VHP for room sterilization, the ApexR will delight you and become the solid foundation you need in a solid Environmental Monitoring Program.
Key Features:
Key Features:
Key Features:
Key Features:
Key Features:
Subscribe to Our Mailing List
Get the scoop on new products and the latest tech papers.
KNOWLEDGE CENTER
SERVICE & CALIBRATION

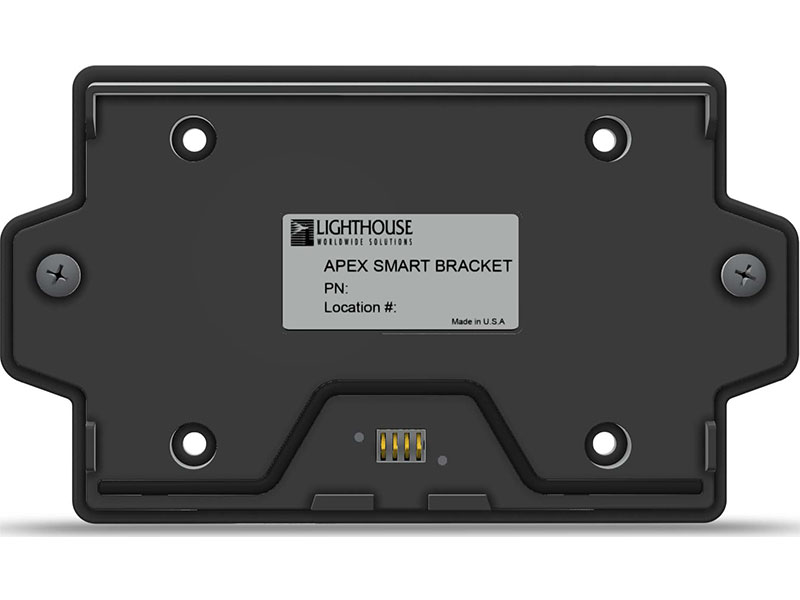

The Apex smart bracket accessory contains the location instead of the particle counter, allowing the user to swap remotes quickly without making changes in the software, ensuring the location remains the same, reducing operator error, and improving location management
The Apex smart bracket accessory contains the location instead of the particle counter, allowing the user to swap remotes quickly without making changes in the software, ensuring the location remains the same, reducing operator error, and improving location management
