ActiveCount

Technical Details



ActiveCount100H

ActiveCount25H

ActiveCount100

Specifications

Flow Rate

100 liters/minute ± 4%

25 liters/minute ± 5%

100 liters/minute ± 4%

Autoclavable Impactor Head

316L Stainless Steel with 88 holes,
19m/sec

316L Stainless Steel with 88 holes,
19m/sec

Aluminum with 300 holes, 19m/sec
(316L Stainless Steel available)

Autoclavable Dust Cover

316L Stainless Steel

316L Stainless Steel

Aluminum (316L Stainless Steel available)

Baseplate

Removable, magnetic, autoclavable

Non- Removable

Exhaust

HEPA filtered, captures 99.97% of particles at 0.3 μm

Non-filtered

Battery

8 Hrs. continuous, 10 Hrs. normal sampling

6 hrs. continuous, 8 hrs. normal sampling



Weight

6.75 lbs

Weight 5.80 lbs (AL), 6.75 lbs (SS)

Petri dish compatibility

Compatible with standard 90 mm petri dish (85mm-92mm), includes adjustment tool

Sample volume presets

8 programmable volume presets

User names

50 programmable user names

Location names

400 programmable location names

Display

3.5 inch (8.9 cm) color touch screen

LED light

RGB LED light for status, alerts, and alarms

Speaker

Adjustable speaker volume

Time/Date formats

Time format 12 or 24 hours, Date formats YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY

USB port

USB 2.0 port (8 GB flash drive included)

Data records

Unlimited; saved on USB flash drive in .csv file format

Log data fields

Start date, time, location, user, sample duration, flow duration, volume, cycles, status

Handle - monopod mountable

Monopod mountable handle 3/8-16, includes 1/4-20 threaded adapter

Enclosure

316L Stainless Steel

Power

24 VDC power adapter (100-240V ~ 1.5A 50-60Hz)

Calibration

Annual

Operating environment

0-90% humidity non condensing, 0-40°C sampling, 0-35°C charging

Dimensions

7.6”(h) x 4.7“(w) x 4.7”(d) [ 19.4 (h) x 12.0 (w) x 12.0 (d) cm]

Carry case

Seahorse case with Lighthouse Worldwide Solutions logo

Included



ActiveCount Unit, sample head, dust cover, baseplate, blower inlet seal (HEPA units only), petri dish adjustment tool,
1/4-20 threaded monopod adapter, 24 VDC power adapter with cord, Operators Manual on 16 GB USB flash drive, calibration certificate, carry case.

Optional



Remote sampling adapter with ISO probe, compressed gas sampler, tubing, cleanroom monopod, IQ/OQ protocols.

How - To - Videos

Get a Quote

ActiveCount25H Air Sampler handle down
ActiveCount25H
ActiveCount100 Air Sampler handle down
ActiveCount100
ActiveCount100H Air Sampler handle down
Click to view 360°

Accessories

ActiveCount_Gas_Sampler

Gas Sampler

Remote Impactor

Impactor Attachment

Meet the Next Generation of Viable Samplers

The ActiveCount Series

The ActiveCount family of microbial air samples are high-performance portable active air samplers suitable for use in cleanrooms and aseptic environments. The ActiveCount100H is ISO 14698 compliant with a d50 collection efficiency of 1 micron and HEPA-filtered exhaust ports designed to avoid re-aspiration of sampled air. The ActiveCount100H offers self-adjusting flow control to ensure accurate sampling and continuous & periodic sampling modes for optimum flexibility.The impactor head, dust cover, and adjustable petri dish holder are entirely autoclavable. You will find these components easily removed and installed on the chemically compatible and sanitizable stainless steel enclosure of the ActiveCounts.

The ‘H’ unit’s exhaust is HEPA filtered to ensure the unit will not contaminate your critical environments.



Key Features:

  • ISO 14698-1 compliant
  • HEPA filtered exhaust
  • 8 programmable sampling volumes
  • 50 programmable user names
  • 400 programmable location names
  • Flow rate alarming
  • Data logging to USB flash drive
  • Password security for sample settings
  • Autoclavable sampling head and dust cover
  • Removable autoclavable petri dish holder
  • 24 VAC adapter or internal battery 10 hours normal use
  • Continuous, Periodic and Gas sampling modes
  • Wipedownable and suitable for sterile conditions
  • Compatible with Rapid Micro Biosystems Growth Direct System

Key Features:

  • ISO 14698-1 compliant
  • HEPA filtered exhaust
  • 8 programmable sampling volumes
  • 50 programmable user names
  • 400 programmable location names
  • Flow rate alarming
  • Data logging to USB flash drive
  • Password security for sample settings
  • Autoclavable sampling head and dust cover
  • Removable autoclavable petri dish holder
  • 24 VAC adapter or internal battery 10 hours normal use
  • Continuous, Periodic and Gas sampling modes
  • Wipedownable and suitable for sterile conditions
  • Compatible with Rapid Micro Biosystems Growth Direct System

Key Features:

  • 3.5 inch (8.9 cm) color touch screen
  • Intuitive user interface
  • 8 programmable sampling volumes
  • 50 programmable user names
  • 400 programmable location names
  • Flow rate alarming
  • Data logging to USB flash drive
  • Autoclavable sampling head
  • AC/battery 8 hrs normal use
  • Continuous, periodic, and gas sampling modes
  • Suitable for sterile conditions
  • Wipe downable
  • Optional compressed gas sampler

Applications

Instrument Files

Title
Download
Datasheet -AC100H, AC25H
Download
Datasheet -ActiveCount100
Download
Operating Manual – ActiveCount100
Download
Operating Manual – ActiveCount100H
Download
Operating Manual – ActiveCount25H
Download

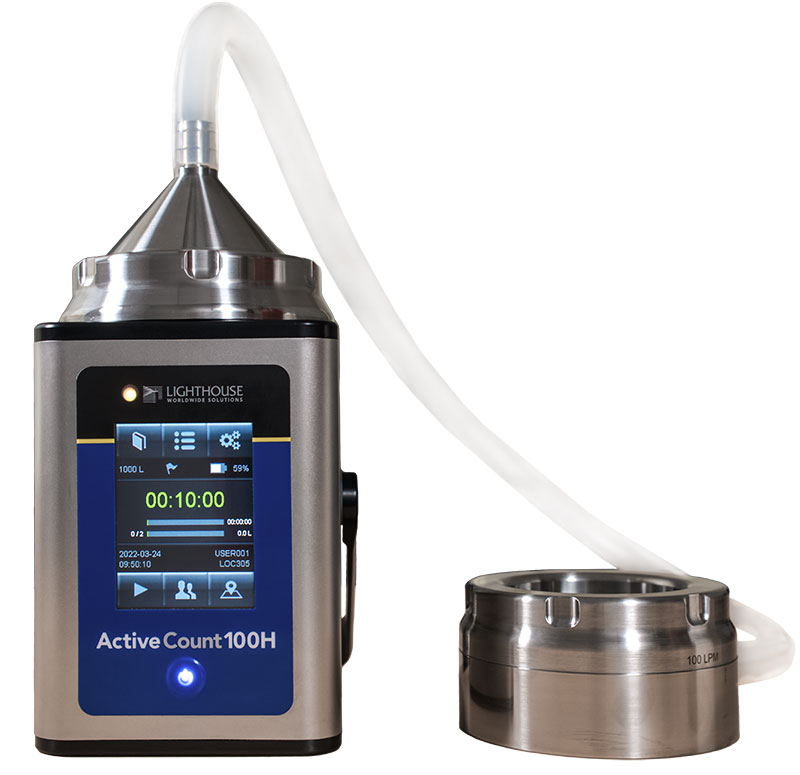

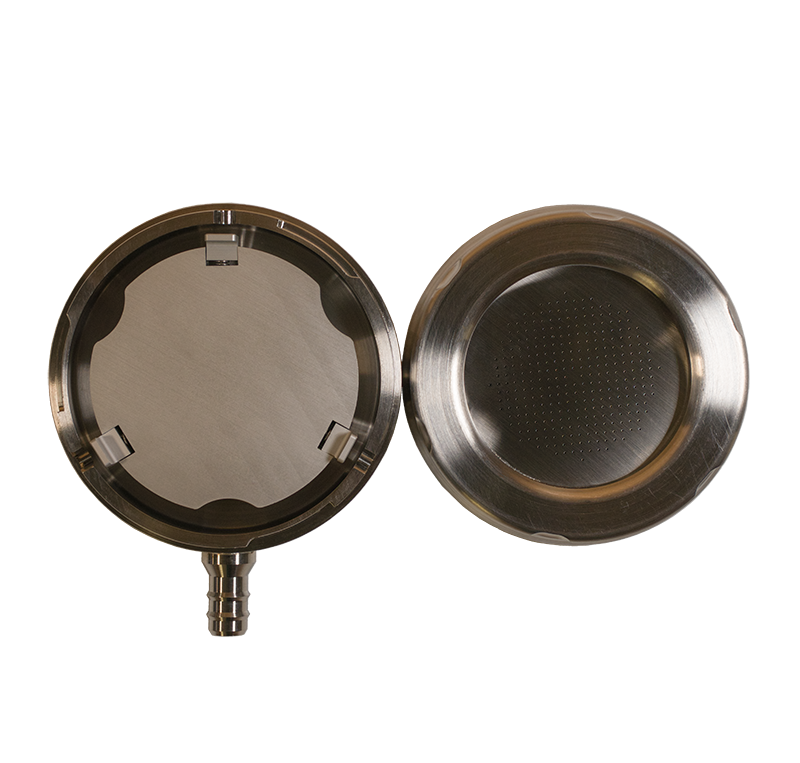

ActiveCount100H Impactor Attachment

Portable Viable sampling in grade A environments has always been a challenge. The remote impactor Sampling kit allows you to have the same benefits of the AC100H while sampling in a Grade A Isolator up to 10 feet away with autoclavable tubing.
