| ApexP3 | ApexP5 | |
Specifications |
||
| Minimum Size Detection | 0.3 μm | 0.5 μm |
| Standard 2 channel sizes | 0.3, 0.5, μm | 0.5, 5.0 μm |
| Optional 4 channel sizes | 0.3, 0.5, 1.0, 5.0 μm | 0.5, 1.0, 5.0, 10.0 μm |
| Additional Available sizes | 0.3, 0.5, 0.7, 1.0, 3.0, 5.0 μm | 0.5, 0.7, 1.0, 3.0, 5.0, 7.0, 10.0 μm |
| Flow Rate | 1 CFM (28.3 LPM) | |
| Communication | Ethernet or Serial | |
| Modbus Protocols | TCP or RTU or ASCII | |
| Ports | Ethernet, RS485 (RJ-45), USB | |
| Touch Screen Display | 5.7 inch color touch screen | |
| Data Storage Records | 3000 | |
| Location Labels | 200 | |
| Self Diagnostics | Yes | |
| Web Browser | Yes | |
| Audible Alarm | Yes | |
| Reports | ISO 14644-1, EU GMP Annex 1, FS-209E | |
| Secure Data Transfer | Designed to meet 21 CFR Part 11 compliance | |
| Languages | English, Spanish, German, French, Italian, Russian, Simplified Chinese, Japanese, Korean | |
| Dimensions | 9.00 x 6.69 x 8.46" (22.86 x 16.99 x 21.48 cm) | |
| Weight | 10.9 lbs (4.76 kg) | |
| Enclosure | 304 Stainless Steel | |
| Power | 24 VDC, 5 amp max draw | |
| Battery | 4 hrs nominal, 3 hrs continuous | |
| Vacuum Source | PID Controlled Vacuum Pump | |
| Air Sample Output | Internally filtered to HEPA standard (>99.97% @ 0.3μm) | |
| Sample Count Modes | Automatic, Manual, Beep, Concentration | |
| Calibration | Designed for ISO 21501-‐4 compliane, annual calibration | |
| Light Source | Laser Diode | |
| Zero Count Level | <1 count /5 minutes per ISO 21501- 4 | |
| Concentration Limits | 500,000 particles/ft3 (17,150,000/m3) @ 5% coincidence loss suitable for ISO classes 1- 8 cleanrooms | |
| Counting Efficiency | 50% @ minimum channel size 100% for particles >1.5 X - 2 X first channel particle size | |
Options |
||
| Software | LMS Express, LMS Express RT, LMS Pharma | |
| Printer | USB Printer | |

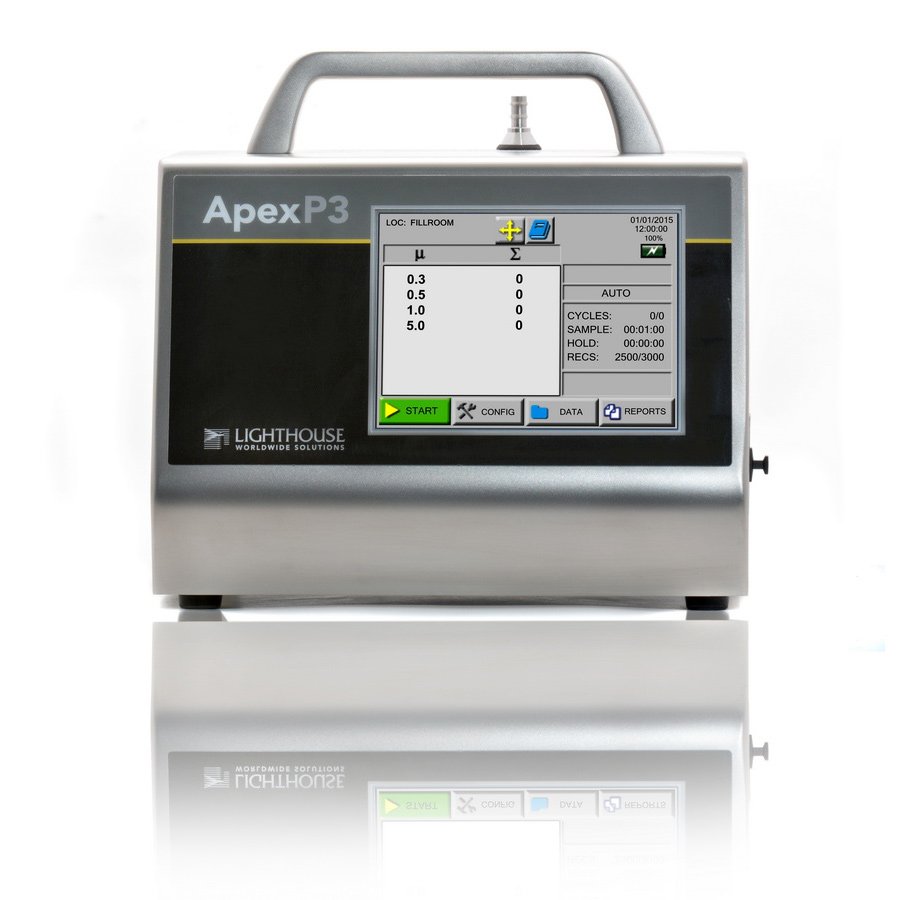

The ApexP is our lightest, smallest portable particle counter. Designed with Self Diagnostics, VHP Compatibility, and Remote Access via the internal web server. When you absolutely need the best in Data Integrity, in the smallest package possible look to the Apex line of Particle Counters.
The ApexP Portable Particle Counter can store up to 3,000 records of particle count data from up to 4 particle channels and the configurable database can store up to 50 recipes for sampling and reports.
Key Features:
Key Features:
Self-Diagnostics
The ApexP was designed with an internal Self-Diagnostic technology that continuously monitors the health of the laser ensuring reliability of the particle count data. Apex Self-Diagnostics on the laser, flow rate and particle detector ensure that the instrument is operating within specified tolerances.
Secure Data Transfer
The ApexP Secure Data Transfer allows all particle count data to be quickly and reliably transferred to a USB flash drive, Computer, Facility Monitoring System or Building Automation System. ApexP has a flexible data communication through the integrated RS-485 Modbus and USB flash drive interfaces. View ApexP data on the built in 5.7 inch color touch screen, USB interface, external printer, web server or communicate Modbus/TCP/IP to 3rd party software applications.
